Product - INDOSTAR MS Square Bar
Strength with Sharp Precision.

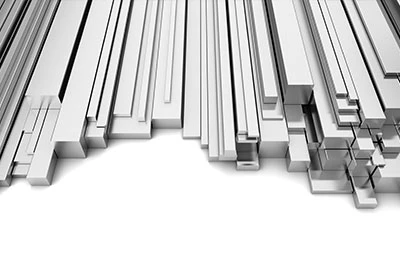

INDOSTAR MS Square Bar
Precision strength. Consistent performance. Built to last.
IndoStar MS Square Bar (Mild Steel Square Bar) is a solid, four-sided structural steel product engineered for reliability, strength, and fabrication efficiency. With a uniform square cross-section, IndoStar MS Square Bars deliver consistent load-bearing capacity and dimensional accuracy, making them ideal for a wide range of construction, fabrication, and engineering applications.
Manufactured by Galwalia Ispat Udyog Pvt. Ltd. through an integrated and quality-controlled process, IndoStar MS Square Bars meet the evolving demands of infrastructure, industrial, and mechanical sectors.
Specification: IndoStar MS Square Bar
| Size (MM) | Min Wt. | Standard Wt. | Max Wt. | Tolerance |
|---|---|---|---|---|
| 10 | 0.730 | 0.785 | 0.839 | .+-7% |
| 12 | 1.073 | 1.13 | 1.186 | .+-5% |
| 16 | 1.909 | 2.010 | 2.110 | .+-5% |
| 20 | 2.983 | 3.140 | 3.297 | .+-3% |
Max Chemical Composition percent in Square Bar as per IS 2062:2011
| Grade | Quality | Carbon% | Silicon% | Mn% | Sulphur% | Phos% | CE% |
|---|---|---|---|---|---|---|---|
| E250 | A | 0.23 | 0.45 | 1.5 | 0.045 | 0.045 | 0.042 |
Mechanical Properties of Square Bar as per IS 2062:2011
| Grade | Quality | YS | UTS | EI% | Internal Bend Dia | Impact Test | |
|---|---|---|---|---|---|---|---|
| E250 | A | 250Mpa | 410Mpa | 23% | 21 upto 25MM | 3T Above 25MM | NA |
Note: Material is made and checked strictly in accordance with IS 2062:2011 and tolerances per IS 808:1989
Properties of INDOSTAR MS Square Bar
Manufactured from carefully selected low-carbon mild steel, ensuring excellent ductility, malleability, and machinability.
Uniform strength across all four sides provides reliable performance in load-bearing and high-stress applications.
Accurate dimensions and straight profiles enable ease of fabrication and precise fitment.
Suitable for galvanization, painting, or coating to enhance resistance against corrosion and environmental exposure.
Consistent quality ensures dependable performance over extended service life.
Applications of INDOSTAR MS Square Bar
01
Used in reinforcement structures, fencing, railing systems, and support frameworks.
02
Essential for machine components, industrial tools, fasteners, and hardware fittings
03
Widely applied in chassis fabrication, axle components, and vehicle reinforcements.
04
Utilized in agricultural tools, conveyors, and mechanical assemblies.
Advantages of IndoStar MS Square Bar
-
Ensures structural stability across diverse industrial and construction applications
-
Easy to cut, drill, weld, and shape as per design requirements
-
Long-lasting performance with minimal maintenance
-
Suitable for both lightweight and heavy-duty structural uses
-
Manufactured to deliver consistent quality and reliable strength
